- This demonstrations optics set uses a Laser Ray Box that has bright, well-defined rays because it uses lasers rather than an incandescent light source. The Laser Ray Box projects five parallel laser beams onto any flat surface. It contains five 1 mW diode lasers (wavelength 635 nm). The laser beams are spread out into clearly visible lines by cylindrical lenses inside the box.
- The ray box has a magnetic back for mounting on any steel board. The unit is powered by an included AC adapter.
- This exceptional optics set includes six magnetically-backed templates that have guidelines showing where to put components to perform different demonstrations, including:
- Modeling the human eye and eyeglasses
- How a camera works
- Two types of telescopes
- Spherical aberration
- Refraction and reflection
- Each component has a magnetic backing for mounting on any steel board.
Tekst je mašinski preveden.

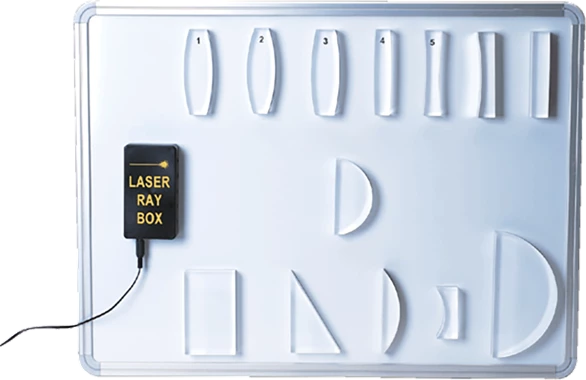

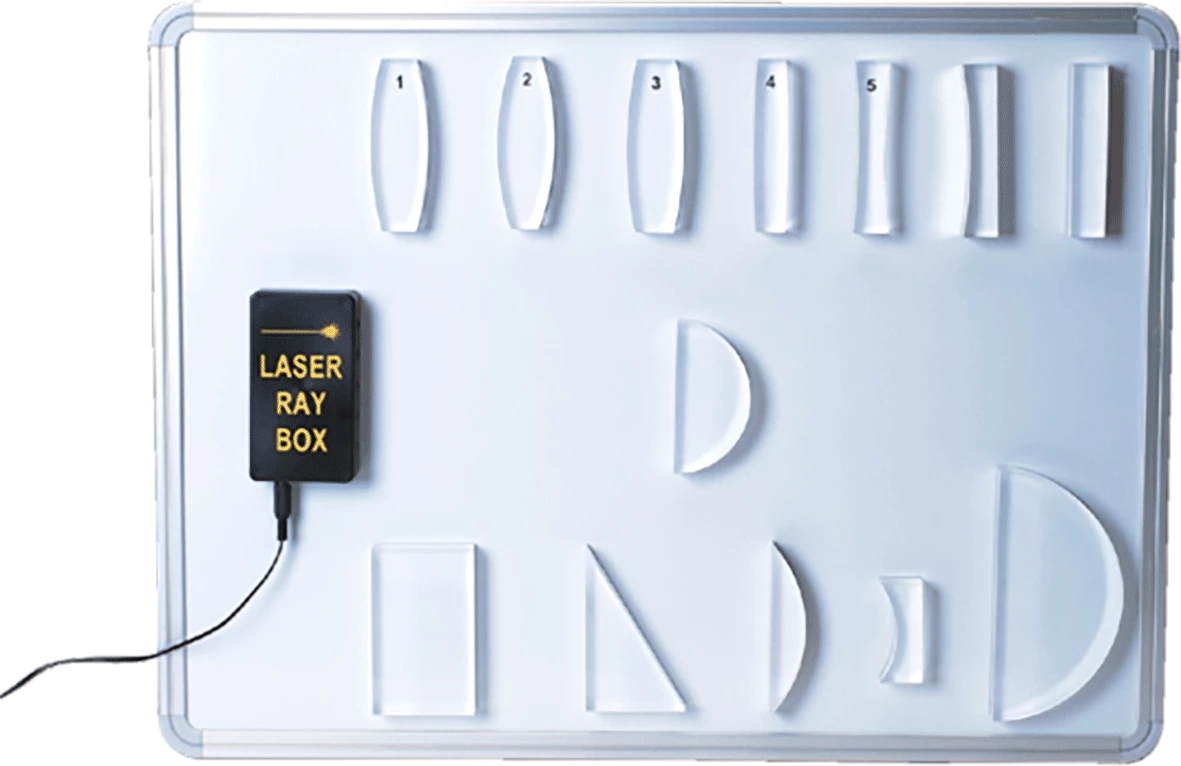

- set SE-8506
- 1x Laser Ray Box
- 1x Laser Ray Mask
- 4x Double-convex lenses
- 1x Double-concave lens
- 1x Plano-concave lens
- 2x “D” lenses (4.5 cm and 7.5 cm radius)
- 1x Plane, convex, and concave mirrors
- 1x Right-angle prism
- 1x Rectangle (6 cm x 10 cm)
- 1x Optical fiber (2 cm x 20 cm)
- 6x Templates
- 1x Steel whiteboard (56.5 cm x 41.5 cm)
- Most components are 10 cm tall and 1.7 cm thick.
Tekst je mašinski preveden.
Naziv: SE-8506
Proizvođač: N/A
Uvoznik: MICOM BH D.O.O. Sarajevo
Zemlja porijekla: N/A
